5000L brewery system for Dominica get ready
- Jul 11, 2020
- Ray Lee
- 7998
- brewery equipment
5000L Brewery system for Dominica get ready
we are going to send out a set of 5000L system to Dominica.
The customer do not need the higher automation.
It is based on approx. 15% of full automation (Siemens S7-1200, 12" touch screen, penumatic valves, automatic rake lifting)

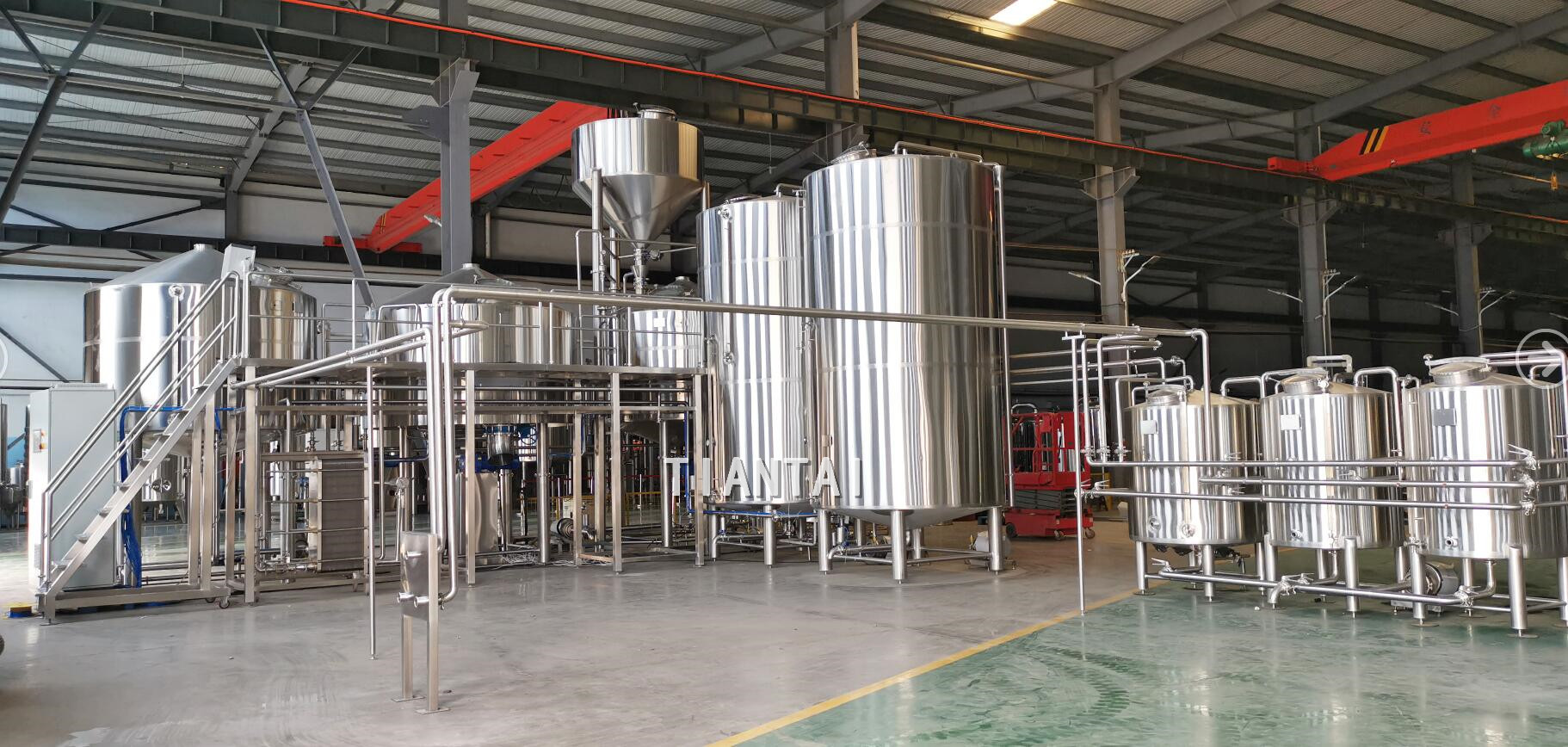

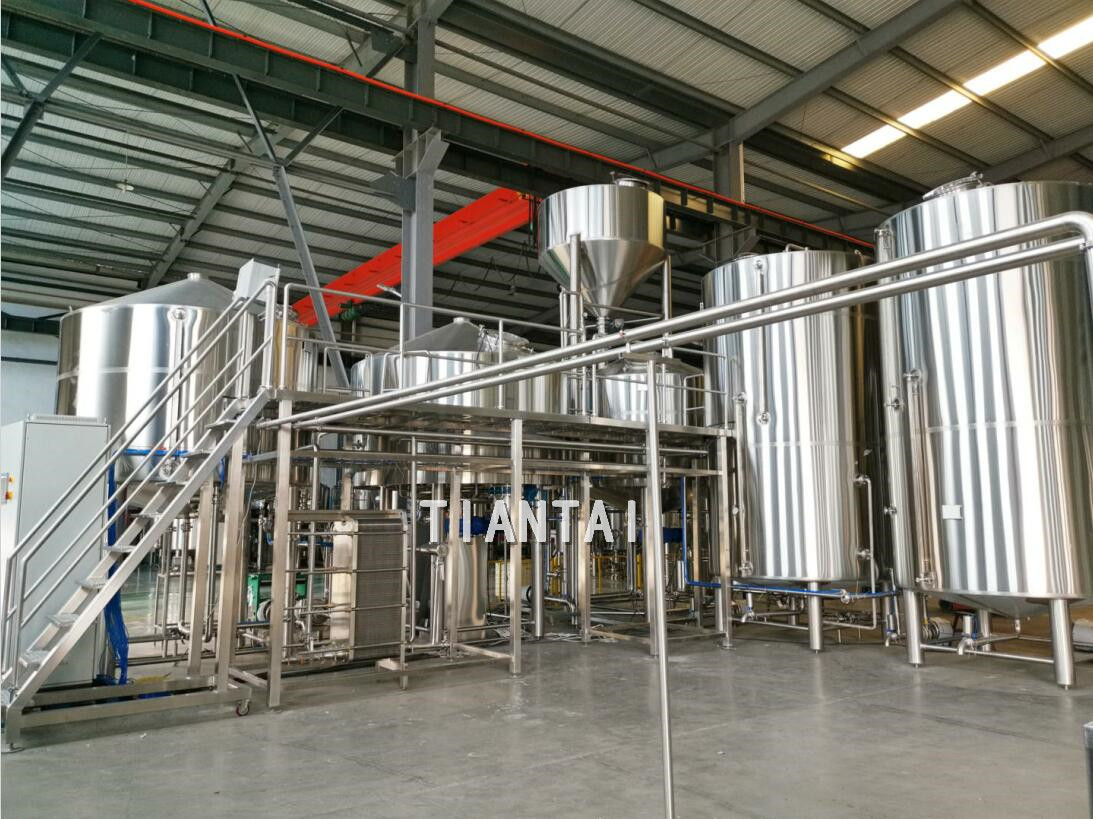

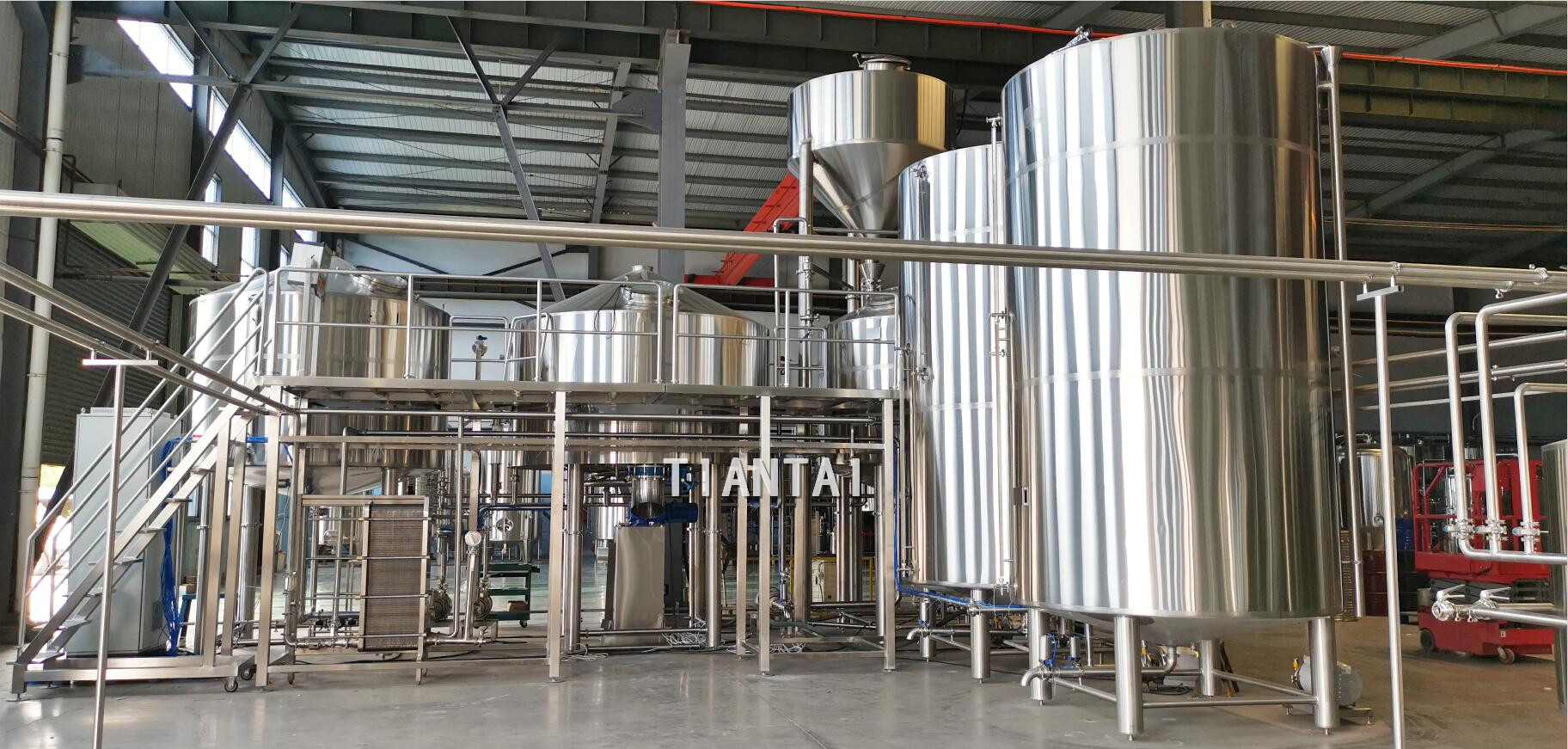

Please check the photos in attachment.
.jpg)
.jpg)
-The brewhouse is 3-vessel: mash tun, lauter tun, kettle/whirlpool combined tank.
This structure can brew almost most popular beers.
-With grain hopper over mash tun
-The grain hopper is mounted with electric valve to feed the grain automatically.
-Under the electric valve, there is a hydrator to spray water onto grains during feeding process.
-So it is helpful to increase the mashing efficiency.
-The grain rake is with automatic lifting function. Automatic lifting rake is necesssary for bigger brewery.

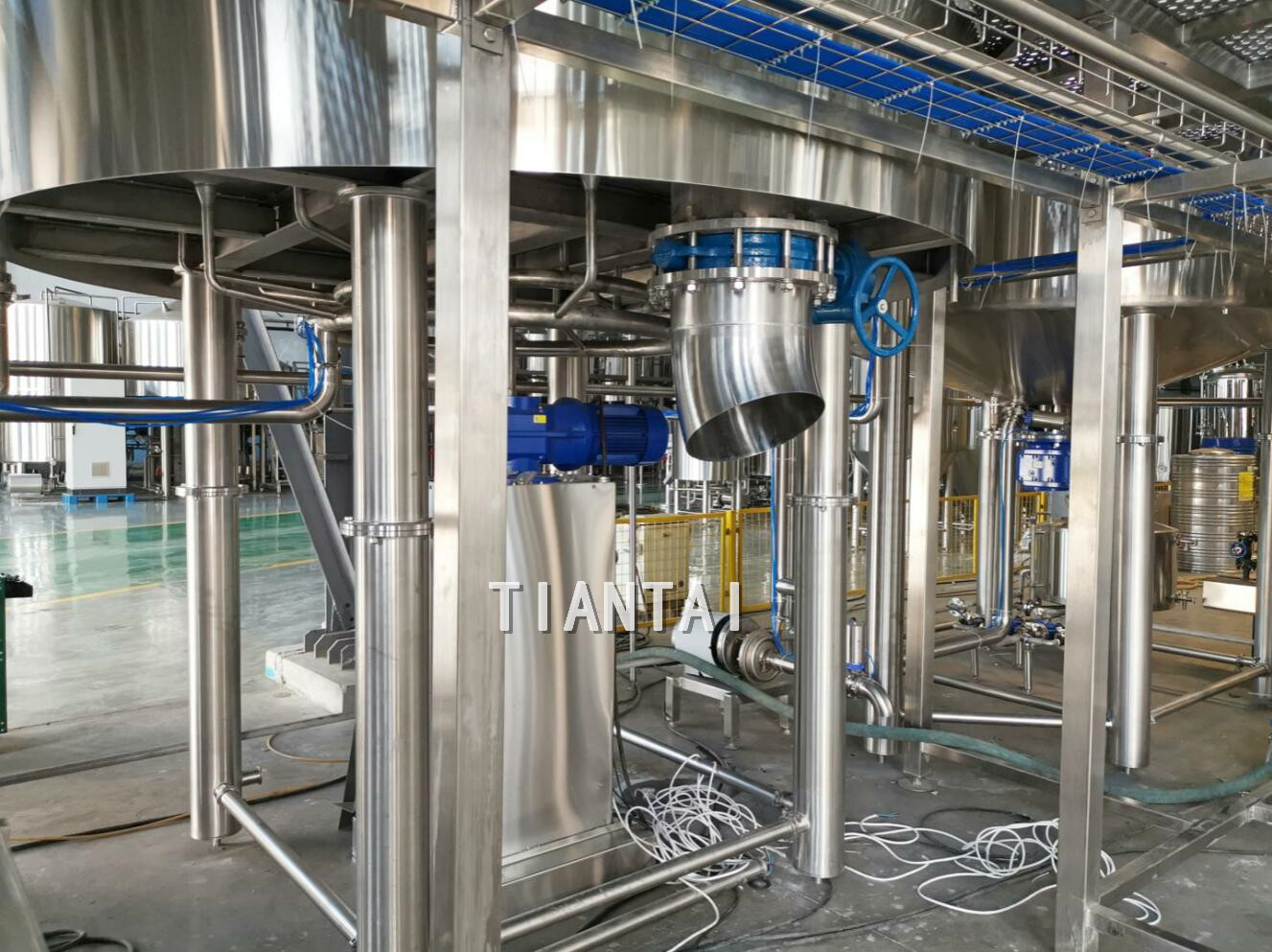

-There is a second electric valve under the lauter tun. It is for draining the spent grain.
-A double-sized cold liquor tank is configured. It will cool the wort independently, the warmed water will be recycled to hot water tank to reuse in next batch.
-The heat exchanger is single stage, it has higher exchanging efficiency than two -stage model.
-The CIP system is connected with the brewhouse with correct pipeline, so the cleaning process is more convenient.
-The lauter tun is designed to brew beer with ABV of 5%-8%.
-The pipline is mounted with 2x pipe filters in series. This will help to avoid the heat exchanger blocking.
.jpg)
.jpg)
If you have special request on the brewing process, or beer types, please let us know.
The proposal will be designed accordingly.
Feel free to contact us to get your interested equipment.
